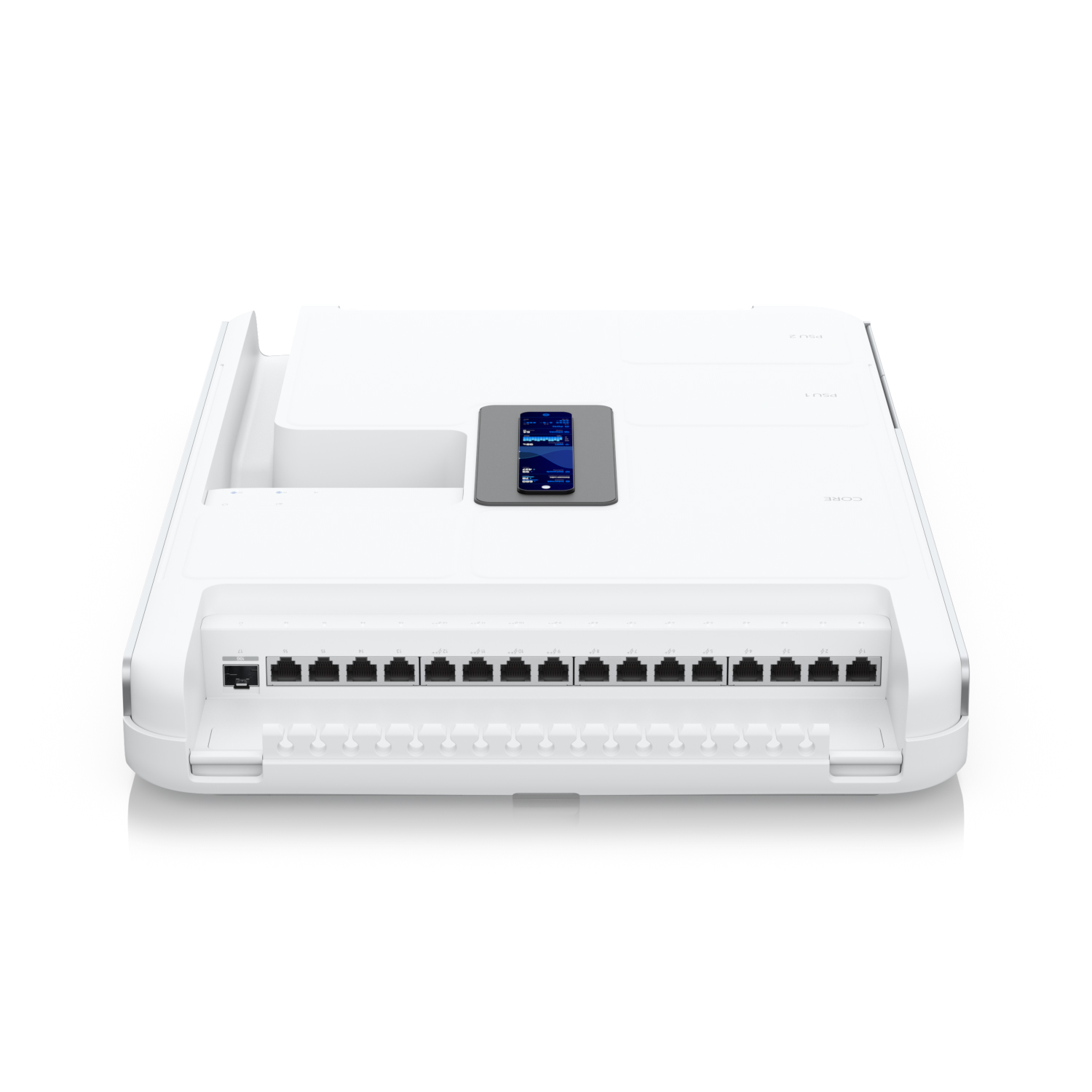

Ubiquiti UDW - UniFi Dream Wall - Image 1

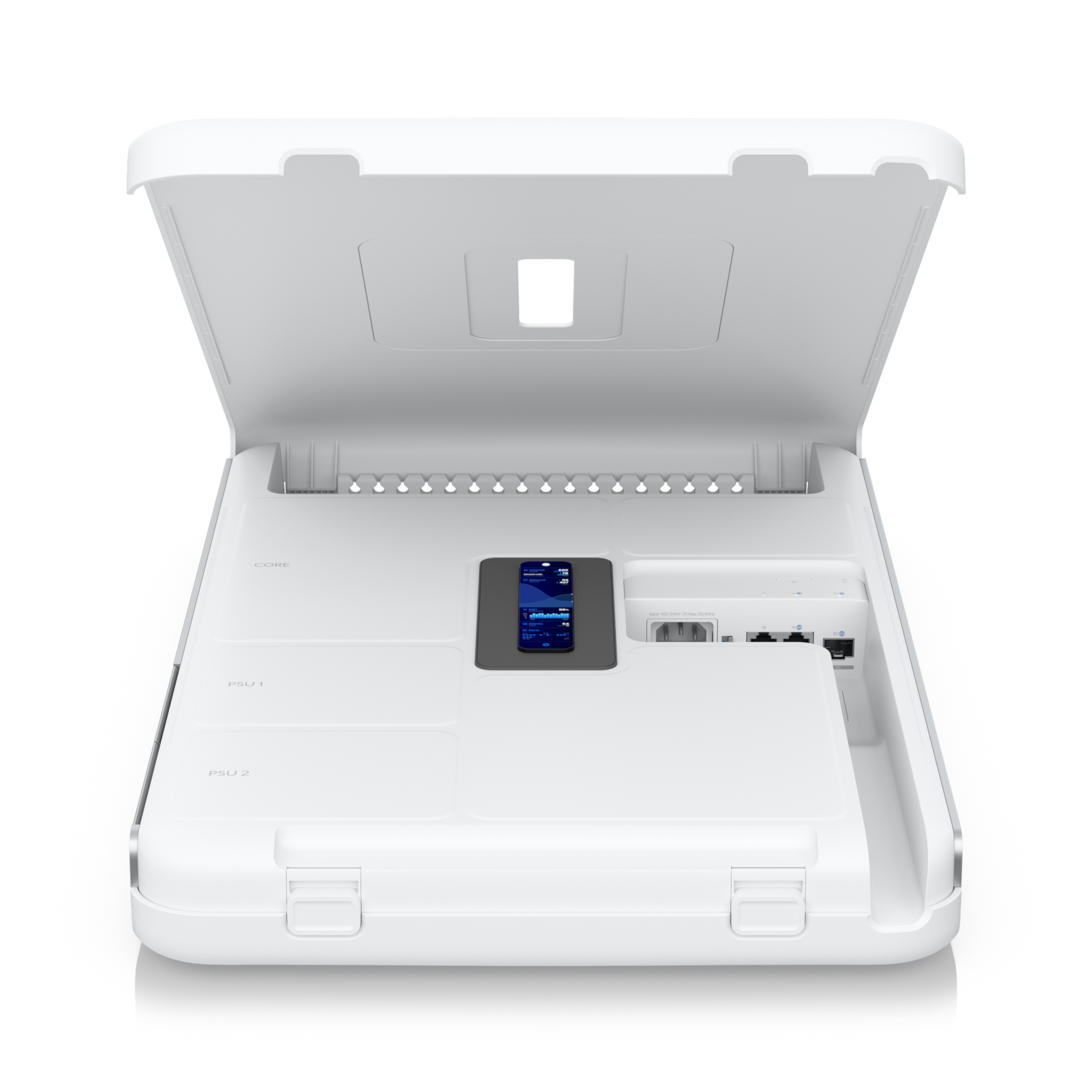

Ubiquiti UDW - UniFi Dream Wall - Image 2

Click to enlarge

Ubiquiti UDW – UniFi Dream Wall

Name: Ubiquiti UDW - UniFi Dream Wall
SKU: UDW
Availability: BackOrder

Κωδικός προϊόντος: UDW

Ubiquiti UDW – UniFi Dream Wall

Wall-mounted UniFi OS Console with a security gateway, a PoE switch including (4) 802.3bt PoE++ ports, a highperformance access point, and a network video recorder.

Built-in WiFi 6 AP
Includes full UniFi application suite for device management
3.5+ Gbps routing with IDS/IPS
(1) 10G SFP+*, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
4.7″ touchscreen for management
Integrated 128 GB SSD & pre-installed 512 GB microSD card

The Dream Wall is a powerful, wall-mounted UniFi OS Console designed to be a standalone, space-saving deployment hosting solution.

This feature-rich, next-gen console is equipped with (17) GbE RJ45 ports, including (12) with PoE output[(4) PoE, (4) PoE+, and (4) PoE++], (3) multi-gigabit WAN/LAN ports, and a dual-band Wi-Fi radio with a 2.7 Gbps aggregate throughput rate to give you the power to build reliable, fast networks that support a variety of local and remote clients. The Dream Wall also has a 1.3″ LCM color touchscreen for convenient status monitoring and a built-in Bluetooth management radio to expedite your setup and configuration process via the UniFi Network web or mobile application. UDM is equipped with Micro SIM slot that requires a memory card with at least 128GB of storage. The Dream Wall comes with one pre-installed PSU.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

$1,147.00

Διαθέσιμο κατόπιν παραγγελίας

Add to compare

Add to wishlist

11 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Χαρακτηριστικά
Dimensions	549 x 342 x 62 mm (21.6 x 13.5 x 2.4″)
Weight	10 kg (22 lb)
Enclosure materials	Polycarbonate, galvanized steel, aluminum alloy
Mount material	Stainless steel

Hardware
Processor	Quad-Core ARM® Cortex®-A57 at 1.7 GHz
System memory	4 GB DDR4
On-board storage	16 GB eMMC \|Integrated 128 GB SSD
Expansion slot	Micro SD memory card* (optional) /*Requires a memory cardwithatleast128GB of storage.
Management interface	Ethernet \| Bluetooth \| WiFi
Networking interfaces	(1) WAN: 2.5 GbE RJ45 port \| (17) LAN: 1 GbE RJ45 ports
SFP+ interfaces	(1) WAN: 10G SFP+ \| (1) LAN: 10G SFP+
PoE interfaces	(4) PoE IEEE 802.3af \| (4) PoE+ IEEE 802.3at \| (4) PoE++ IEEE 802.3bt
LCM display	(1) 1.3″ touchscreen \|Start-up animation: start-up in progress\|Firmware update icon: rmware updating
Button	(1) WAN: 2.5 GbE RJ45 port \| (8) LAN: 1 GbE RJ45 ports
SFP+ interfaces	(1) WAN: 10G SFP+ \| (1) LAN: 10G SFP+
PoE interfaces	(4) PoE IEEE 802.3af \| (4) PoE+ IEEE 802.3at \| (4) PoE++ IEEE 802.3bt
LCM display	(1) 1.3″ touchscreen \|Start-up animation: start-up in progress\|Firmware update icon: rmware updating
Button	Factory-reset
Power method	Universal AC input 100 to 240VAC, 7A Max, 50/60Hz
Power supply	(2) Hot-Swappable AC/DC 550W PSU
Max. power consumption	532W
Max. PoE wattage per port by PSE	PoE 802.3af: 15.4W \| PoE+ 802.3at: 30W \| PoE++ 802.3bt: 60W
Voltage range 802.3af mode	44 to 57V
Voltage range 802.3at/bt mode	50 to 57V
Max. TX power	2.4 GHz\|23 dBm, 5.0 GHz\|26 dBm
MIMO	2.4 GHz\|2×2, 5.0 GHz\|4×4
Throughput rate	2.4 GHz\|300 Mbps, 5.0 GHz\|2.4 Gbps
Antenna gain	2.4 GHz\| 5.9 dBi, 5.0 GHz \| 6.0 dBi
Mounting	Wall mount(included)
ESD/EMP protection	Air: ± 8 kV, contact: ± 4 kV
Operating temperature	-10 to 40° C (14 to 104° F)
Operating humidity	5 – 95% noncondensing
Certications	CE, FCC, IC

Software
WiFi standards	802.11a/b/g/n/ac/ax WiFi 4/WiFi 5/WiFi 6
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guesttrafc isolation	Supported
Concurrent clients	300+

LEDs
Ethernet	White: link/activity
SFP+	White: link/activity
PSU	Blue: ready \| Amber: failure

Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)	6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
