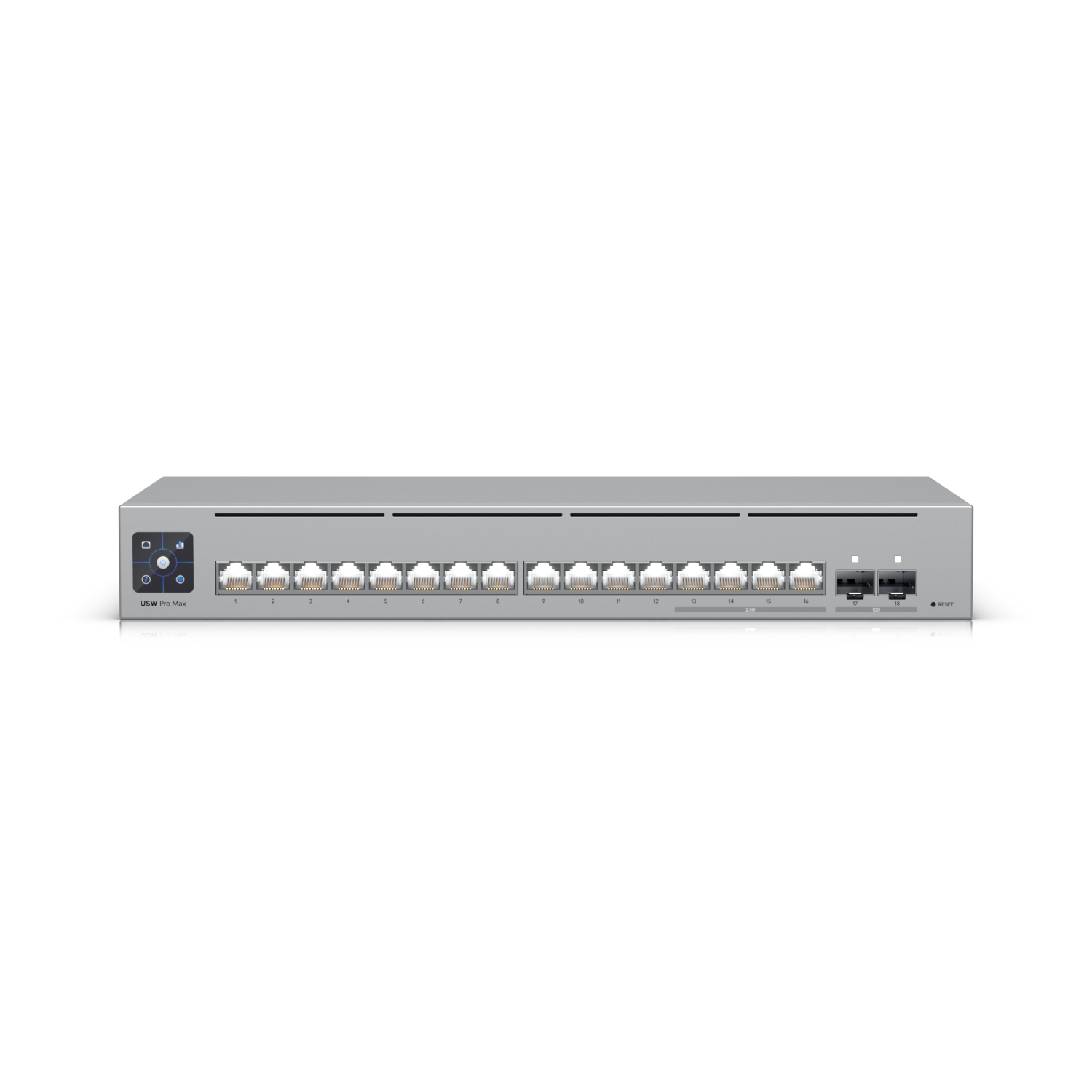

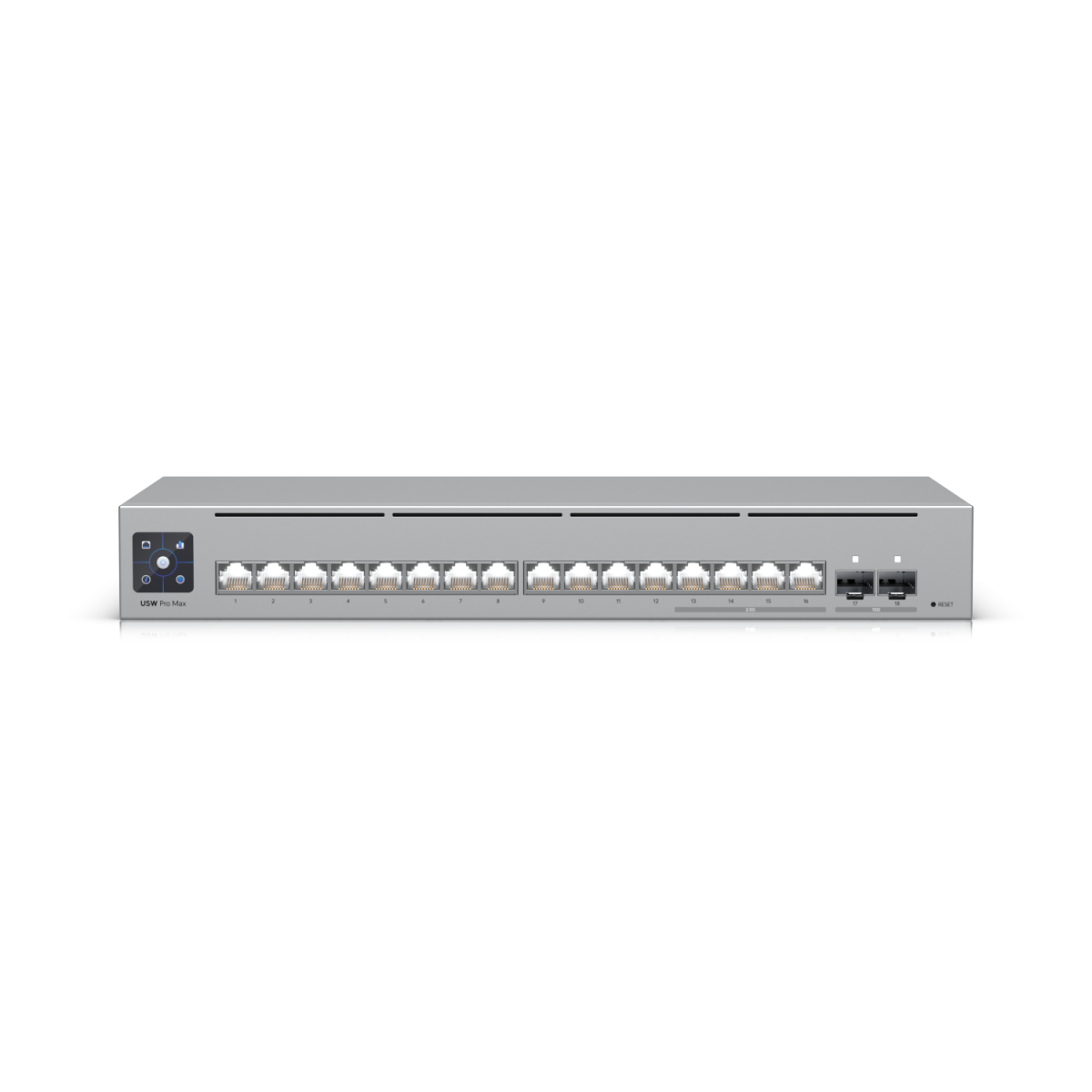

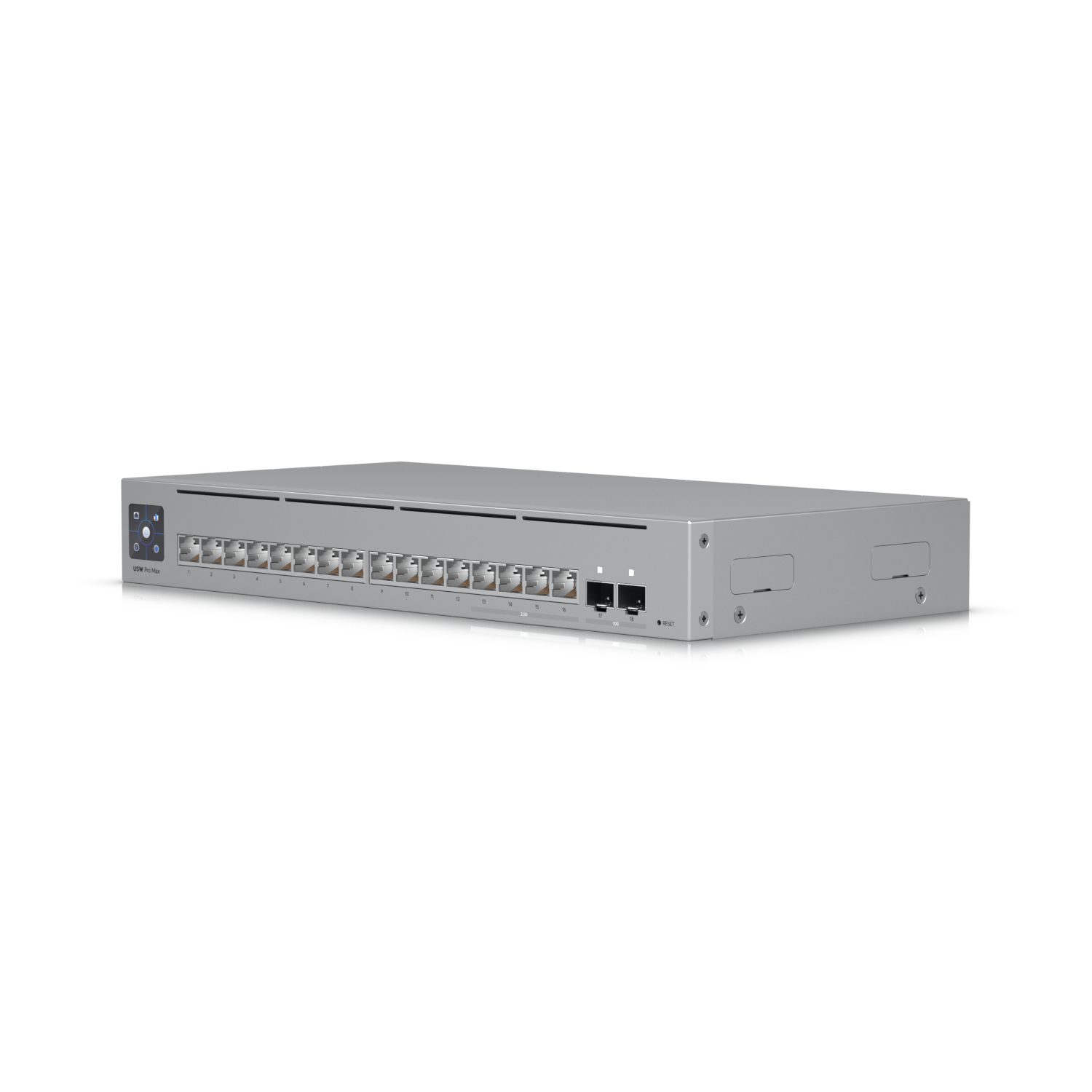

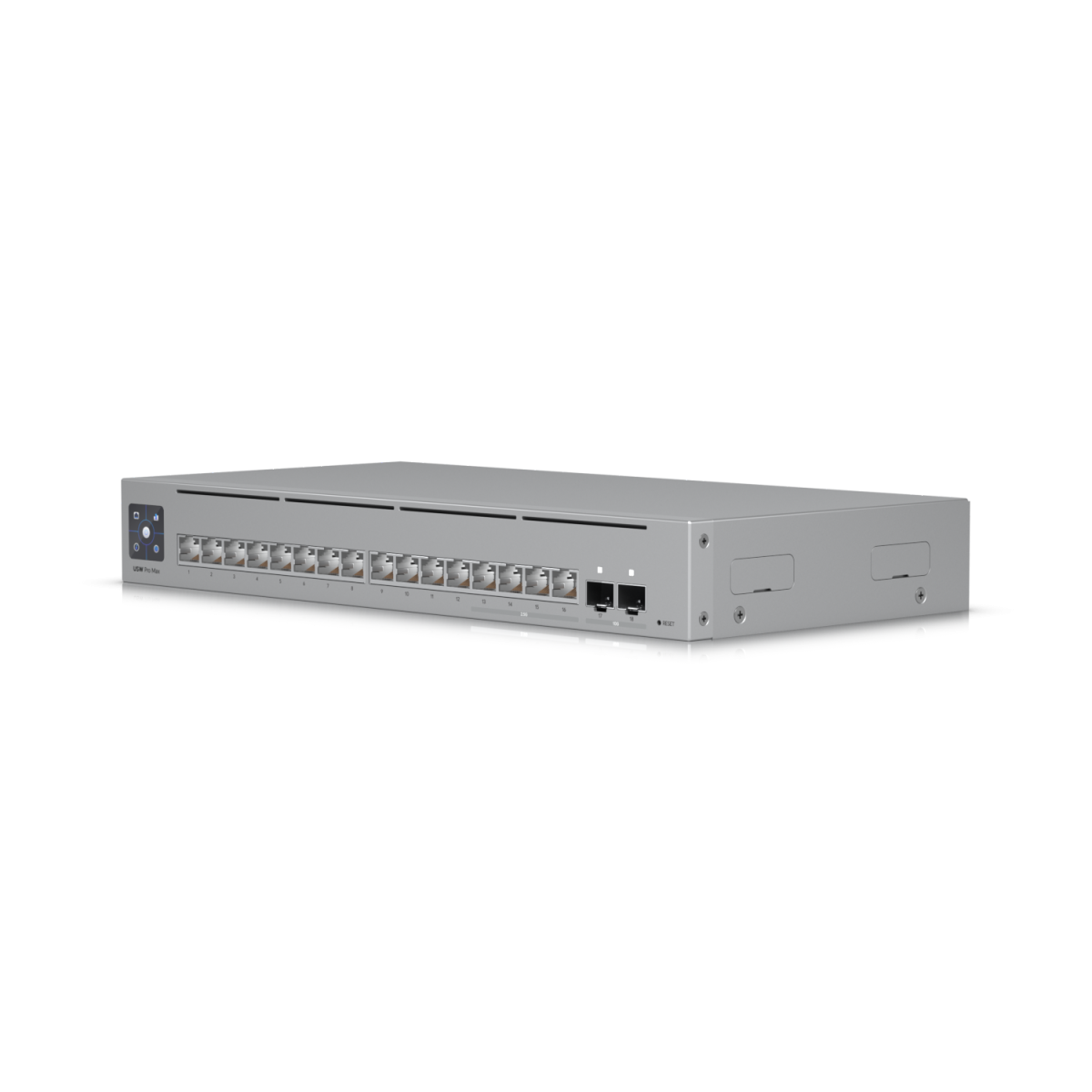

Ubiquiti USW-Pro-Max-16, UniFi Switch 16-Port
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$33,901.00
Διαθέσιμο κατόπιν παραγγελίας
Διαθέσιμο κατόπιν παραγγελίας
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″) |
| Port Layout | |
| 1GbE RJ45 | 12 (1G/100M/10M) |
| 2.5 GbE RJ45 | 4 (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U), desktop, wall |
| Etherlighting™ | Yes |
| Performance | |
|---|---|
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| L3 Table Size | ARP Entries: 6.000 | IPv4 Routes: 512 |
| Packet Buffer Size | 1.5 MB |
| Layer 3 Features | |
|---|---|
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
|---|---|
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
|---|---|
| Max. Power Consumption | 25W |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | USB Type-C, 5V DC, 5A |
| Power Supply | AC/DC, external, 25W |
| Supported Voltage Range | 4.8—5.2V DC/USB |
| Management | Ethernet | AR |
| Heat Dissipation (Excluding PoE Output) | 85,3 BTU/hr |
| Weight | 1.95 kg (4.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2″) |
| LCM Display | 1.3″ touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | Ethernet: Yes | SFP+: Yes |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
|---|---|
| Application Requirements | UniFi Network: Version 8.1.127 and later |
